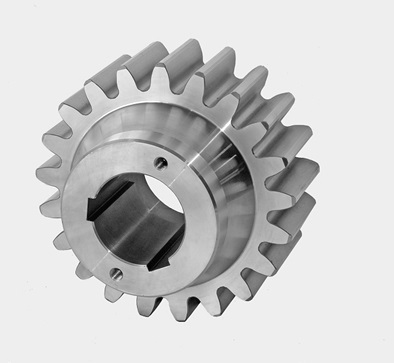

Spur gear

DandehTarash Industrial Group is capable of producing a wide range of sizes and volumes of precision ground or cut spur gears up to a quality DIN 4.

Ground Spur Gears

CAPABILITIES:

Diameter: Up to 2000 mm
Face: Max 760 mm
Pitch: Up to 30 Module
Quality: DIN Tolerance 4

EQUIPMENT:

(1) Hofler H1603/2000 Supra CNC
(1) Hofler H1250 NC
(1) Hofler H1000 NC
(1) Niles H630 NC
(1) Komsomolec 5B835

Cut Spur Gears

CAPABILITIES:

External:

Diameter: Up to 5000 mm
Face: Max 2000 mm
Pitch: Up to 30 Module
Quality: DIN Tolerance 7

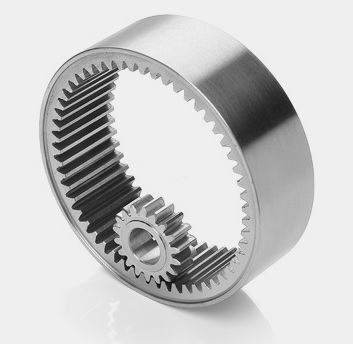

Internal:

Diameter: Up to 1500 mm
Face: Max 210 mm
Pitch: Up to 16 Module
Quality: DIN Tolerance 7

EQUIPMENT:

(1) Liebherr L3200
(1) Kolomna 5A342P
(3) Kolomna 5A342
(1) Komsomolec 53A11
(1) Stanko 53A13C
(1) TOS OF 71
(1) TOS FO 10
(1) CUGIR FD-500
(1) CUGIR FD-800 with automatic crowning
(1) SYKES H-160
(1) Stanko KC3-109 shaper
(1) Stanko 5B150 shaper
